Air Distribution Specialist – DAMPERS

Precision airflow control components designed for efficient HVAC management in both residential and industrial systems.

Key Type Collar Damper

  • Frame & blade made out of extruded aluminum profile
  • Manual key-type regulation for airflow control in collar ducts
  • Mounted on neck of grills/diffusers
  • Plastic bushes for smooth operation
  • Finish: Black or Mill finish
  • Optional construction in Mild Steel / GSS
Key Type Collar Damper
Back Draft Damper

Back Draft Damper / Gravity Louver

  • Manual airflow control in round collar ducts
  • Constructed from high-grade galvanized sheet
  • Finish: Mill Finish
  • Optional: Extended sleeve

2-FLAP ROUND BUTTERFLY DAMPER

  • Manual control of airflow in round collar ducts
  • Made out of high grade Galvanised sheet
  • Finish: Mill Finish
  • Optional: Extended sleeve
Round Damper
Round Damper

ROUND DAMPER SINGLE BLADE

  • Frame & Blades are made from high grade Galvanised sheet
  • Control mechanism with open / close indication
  • Self-locking control mechanism made of rubber is installed in dampers
  • Optional: One side Flange

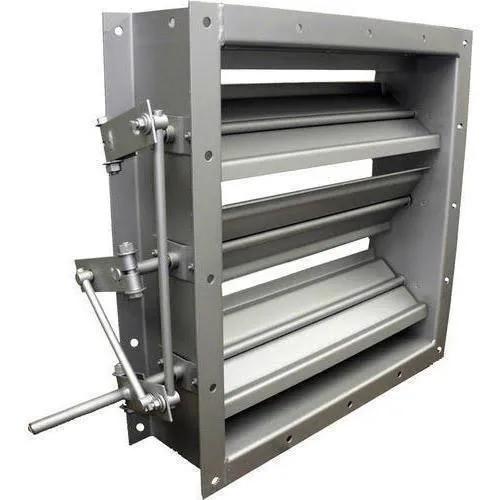

GI VOLUME CONTROL DAMPER

  • Manual control of airflow in main & branch ducts
  • Frame & Blades are made from galvanised steel sheet
  • Control mechanism with open / close indication
  • 3 V Groove type blade for proper shutting of the damper
  • Optional: Motorised / Motor Drive
Round Damper
Round Damper

Extruded Aluminum Damper – Low Leakage

  • Constructed from high-grade extruded aluminum profiles
  • Opposed blade operation with PVC gear mechanism
  • Control with open/close indicator
  • Aerofoil blades with tip seals for tight closure and smooth operation

GI FIRE DAMPER - WITH OR WITHOUT SLEEVE

  • Frame & Blades are made out of galvanised steel sheet in 1.6 mm thickness
  • Application - for the isolation of duct penetrations between Fire compartments
  • 3 V Groove type blade for proper shutting of the Fire damper
  • Motorised Fire Dampers are with spring return Electric Actuator integrated with fully automatic operation
  • Fire resistant damper blade & release mechanism (In Fusible link type dampers)
  • Stainless Steel pop up side seal for positive closure
  • Standard Sleeve Length - 400mm
Round Damper
